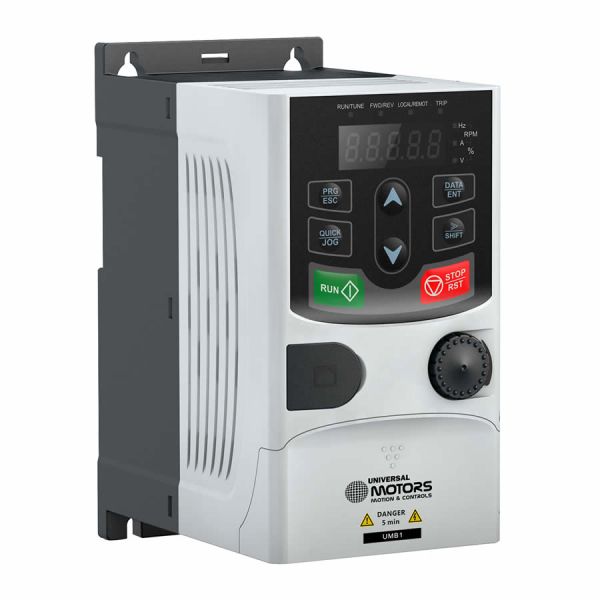

Universal UMB1 series AC Inverter for 400V 3ph motor. Operates in standard V/F or Sensorless Vector Control to control the speed of a standard 3PH AC Electric motor
Dynamic Braking (DBr): Internal Brake Switch fitted. (does not have to be used resistor not supplied)
Fixed Keypad with Potentiometer, 2 Analogue Inputs, 4 Digital Inputs, 1 Digital Output, 1 Analogue Output, 1 Relay Contact, 1 x Pulse Input (50kHz Max Input).
Comms: RS485 fieldbus. Modbus protocol
STO Included: Class SIL2 PLd Cat3
EMC Compliance: No integrated EMC filters, optional external filters available
Panel Mounting, ambient operating temperature to 40°C without de-rating
| Power | 7.5kW |
|---|---|
| Supply Voltage | 415V 3PH |
| Output Voltage | 415V / 3PH / 50Hz |
| Output Current | 18.5A |
| Frame Size | 4 |
| Display | LED |
| Analog Inputs | Max. 2 |
| Analog Outputs | Max. 1 |
| Digital Inputs | Max. 4 |
| Digital Outputs | Max. 1 |
| Relay Outputs | 1 |
| Internal Brake | YES |
| Built in EMC Filters | NO |
| Communications | MODBUS RTU |
| IP Rating | IP20 |
