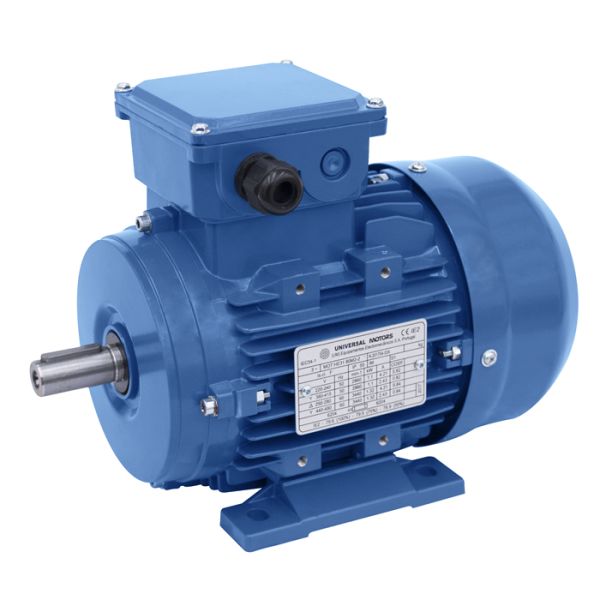

2.2Kw 4 Pole 230/400V 3Ph IE3 Electric Motor

Available Mounting Options:
B3 Foot Only
B14 or B5 Flange Only
B34 or B35 Foot & Flange
Availability: In stock

These aluminium frame 3 phase electric motors suit a wide range of industrial and commercial applications. Adhereing  to the latest European mechanical and electrical standards they are heavy duty, rugged and reliable. They are of a high quality, suit wet and dusty environments, have a lightweight aluminium construction and are efficiency IE3 rated. Used in applications such as air conditioners, fans, hydraulics, agricultural, packing equipment and so on. You can improve efficiency as these motors run smoother than their single phase counterparts. The operating conditions can be preserved inside the unit in most working environments.

Key points:

  • Dual European voltage
  • 50/60 Hz rated
  • Inverter drive rated
  • Inverter rated insulation
  • Temperature rise: Class B (110°C)
  • Sheet metal fan cover
  • Continuous duty S1
  • Aluminium terminal box (complete with metric cable gland entries)
More Information
Motor Voltage 230 / 400V 3PH
Efficiency IE3
Power 2.2kW
No of Poles 4
Speed (RPM) 1500
Full Load Current (A) 4.5
Thermal Monitor N/A
Motor Frame Size 100L
Motor Frame Material Aluminium
IP Rating IP55
