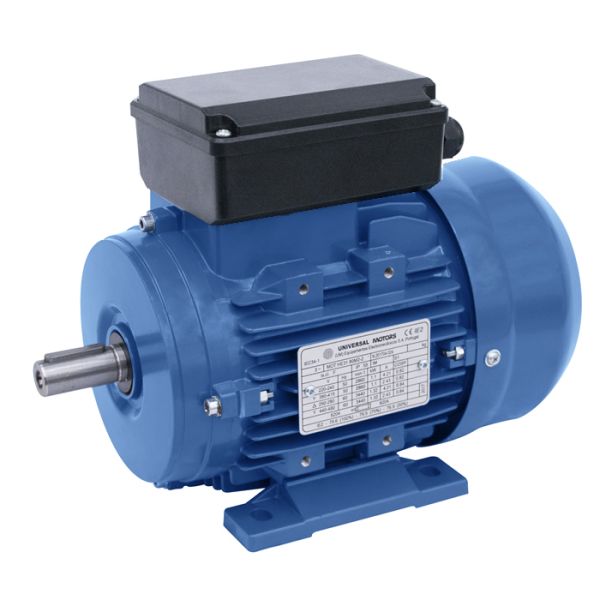

0.75Kw 4 Pole 230V 1Ph Dual Cap. IE1 Electric Motor

£110.56
Available Mounting Options:
B3 Foot Only
B14 or B5 Flange Only
B34 or B35 Foot & Flange
Availability: In stock
SKU
UNIVERSAL-UCC80G-4

These aluminium frame single phase dual capacitor electric motors suit a wide range of industrial and domestic applications. Adhereing to the latest European mechanical and electrical standards they are heavy duty, rugged and reliable. They are of a high quality, suit wet and dusty environments and are efficiency IE1 rated. Used in applications such as air conditioners, fans, hydraulics, agricultural, packing equipment and so on. These motors are for use with high starting torque applications.

Key points:

  • High starting torque performance
  • Multi-mount frame
  • Easy Clockwise or Anti-clockwise rotation
  • Dual Capacitor (Cap Start - Cap Run)
  • Insulation Class: F
More Information
Motor Voltage 230V 1PH
Efficiency IE1
Power 0.75kW
No of Poles 4
Speed (RPM) 1500
Full Load Current (A) 5.22
Thermal Monitor N/A
Motor Frame Size 80M
Motor Frame Material Aluminium
IP Rating IP55
