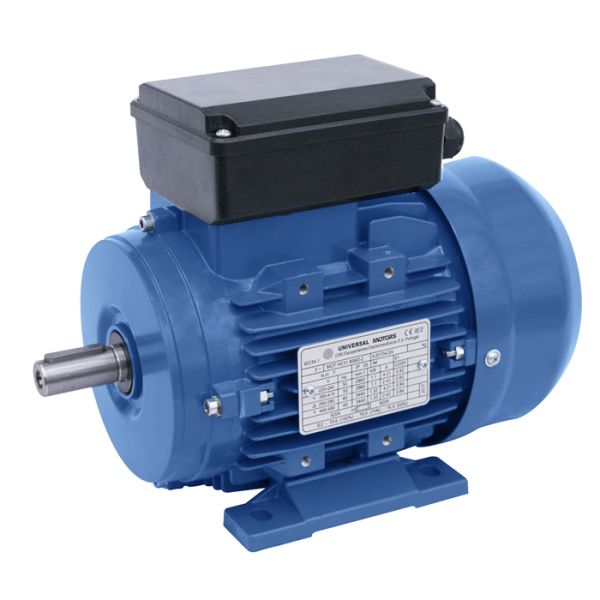

0.37Kw 2 Pole 230V 1Ph Dual Cap. IE1 Electric Motor

£69.26
Available Mounting Options:
B3 Foot Only
B14 or B5 Flange Only
B34 or B35 Foot & Flange
Availability: In stock
SKU
UNIVERSAL-0-37KW-D71S-2P-1PH-230V-CS-CR-IE1

These aluminium frame single phase electric motors suit a wide range of industrial, commercial and domestic applications. Adhereing  to the latest European mechanical and electrical standards they are heavy duty, rugged and reliable. They are of a high quality, suit wet and dusty environments, have a lightweight aluminium construction and are efficiency IE1 rated. Used in applications such as conveyors, vacuum pumps, refrigeration equipment and high pressure washers etc. The operating conditions can be preserved inside the unit in most working environments.

Key points:

  • High starting torque performance
  • Multi-mount frame
  • Easy Clockwise or Anti-clockwise rotation
  • Dual Capacitor (Cap Start - Cap Run)
  • Insulation Class: F
More Information
Motor Voltage 230V 1PH
Efficiency IE1
Power 0.37kW
No of Poles 2
Speed (RPM) 3000
Full Load Current (A) 2.73
Thermal Monitor N/A
Motor Frame Size 71S
Motor Frame Material Aluminium
IP Rating IP55
